Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "REMOVAL ")

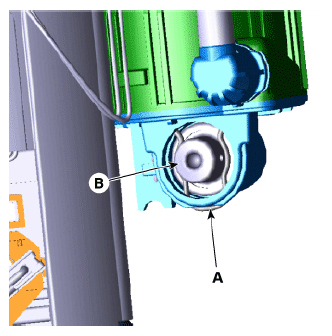

  2. Remove the fuel pressure regulator fixing clip (A).
  3. Remove the fuel pressure regulator (B) from the fuel filter.
G12932902Courtesy of KIA MOTORS AMERICA, INC.
G12932903Courtesy of KIA MOTORS AMERICA, INC.
