High Pressure Fuel Line
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF and then remove the battery negative (-) terminal.
- Disconnect the ignition coil #4 connector.

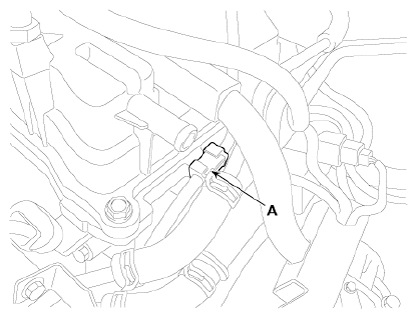

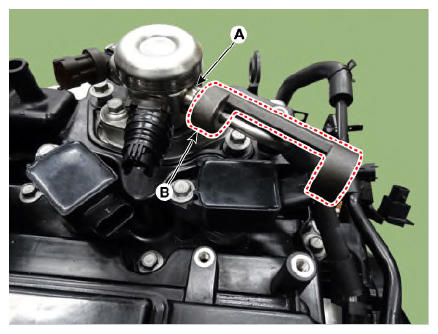

- Remove the high pressure pipe flange nut (A) in order of with the special service tool (B) [SST No.: 09314-3Q100]
High pressure fuel pipe flange nut:
26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

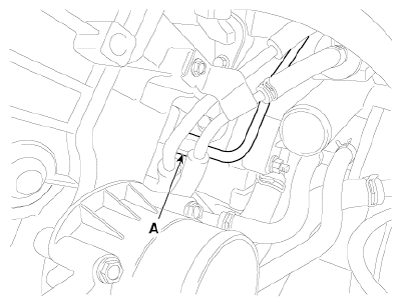

- Remove the high pressure fuel pipe function block mounting bolt (A).
High pressure fuel pipe function block mounting bolt:
7.8 - 11.8 N.m (0.8-1.2 kgf.m, 5.8-8.7 lb.ft)
