Home >> Kia >> 2020 >> Optima EX Premium >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 50 (Engine Starting System - 2.4L (Except HEV)) >> Starter >> Components & Components Location >> Components

Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

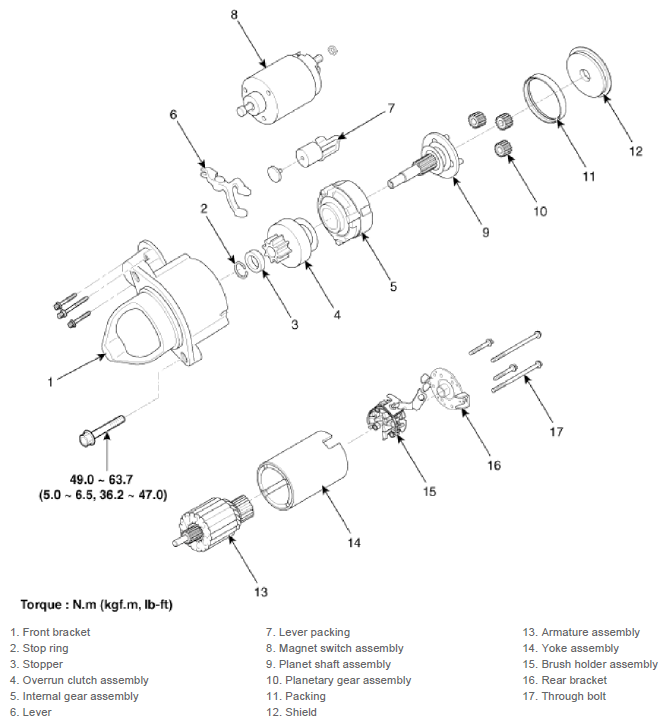

Fig 1: Exploded View Of Starter Components With Torque Specification
G12932652Courtesy of KIA MOTORS AMERICA, INC.
