Center Muffler

WARNING: This page is about a different variant/trim than selected.

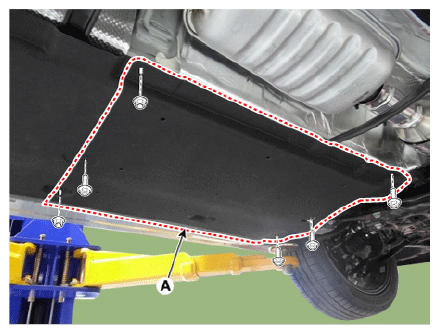

Remove the RH floor under cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

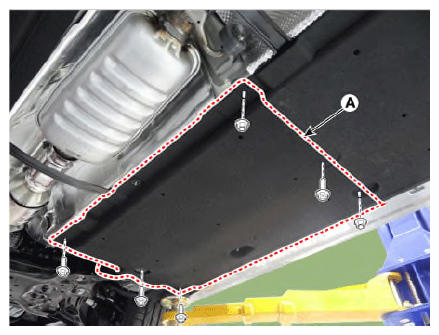

Remove the LH floor under cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

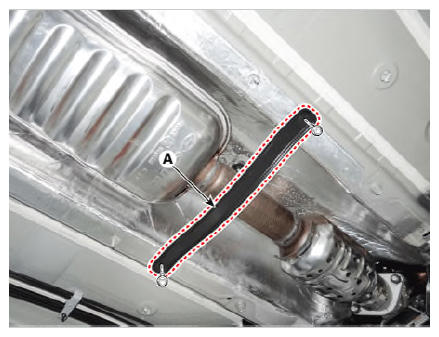

Remove the bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

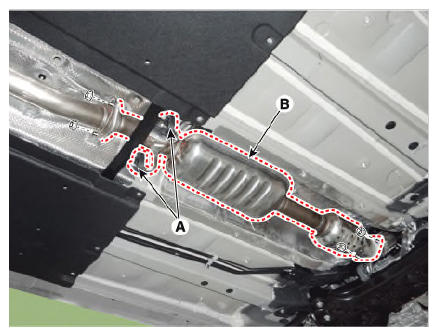

Detach the rubber hangers (A) from the center muffler.
Remove the catalytic converter and the center muffler (B).
Tightening Torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing, replace with new gaskets.
Install in the reverse order of removal.
