Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.

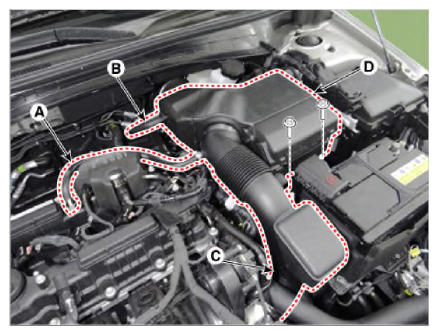

1. Disconnect the breather hose (A) the vacuum hose (B).
2. Disconnect the air intake hose (C) and then remove the air cleaner assembly (D).
  Tightening Torque

  Hose clamp:

  2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft)

  Air cleaner bolts:

  7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
