Repair Procedures: Disassembly
WARNING: This page is about a different variant/trim than selected.
NOTE:
Identify mechanical lash adjuster (MLA), valves, valve springs as they are removed so that each item can be reinstalled in its original position.

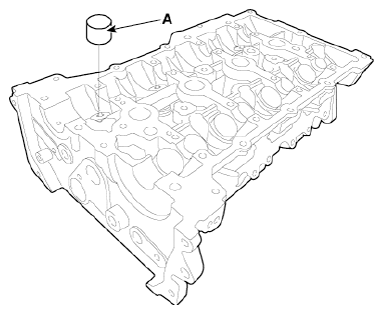

- Remove the MLAs (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Remove the valves.

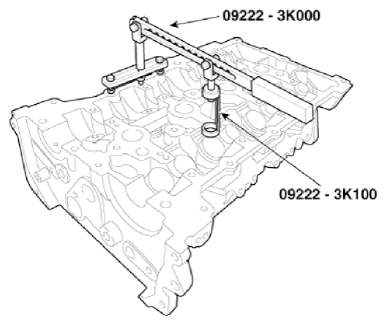

- Using SST (09222-3K000, 09222-3K100), compress the valve spring and remove retainer lock.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Remove the spring retainer.
- Remove the valve spring.
- Remove the valve.
- Using needle-nose pliers, remove the valve stem seal.
NOTE:
Do not reuse old valve stem seals.
