Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt.

    (Refer to Timing System - "DRIVE BELT ")

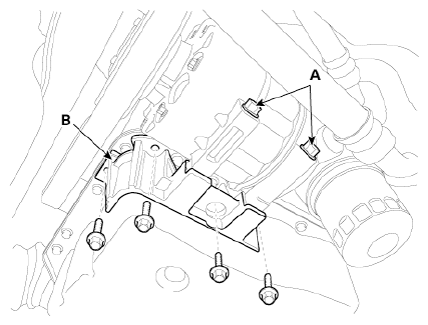

  2. Remove the A/C compressor lower mounting bolts (A).
  3. Remove the A/C compressor bracket (B).
    G12932491Courtesy of KIA MOTORS AMERICA, INC.
  4. Drain the engine oil.

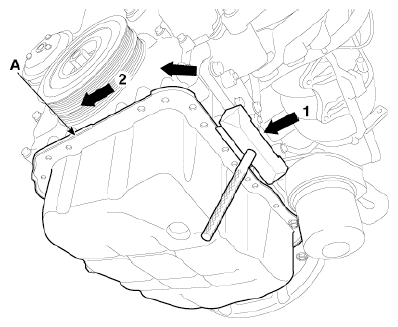

  5. Remove the oil pan (A). Insert the blade of SST (09215-3C000) between the ladder frame and oil pan. Cut off applied sealer and remove the lower oil pan.
G12932492Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of arrow.
  • After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
  • Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
