Removal And Installation

WARNING: This page is about a different variant/trim than selected.

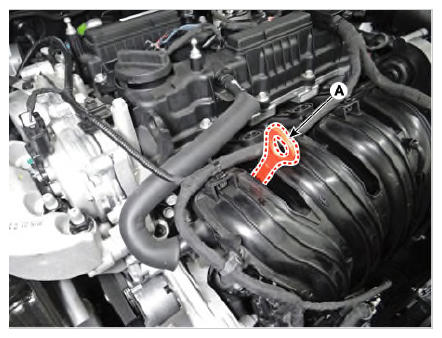

Remove the oil level gauge (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")

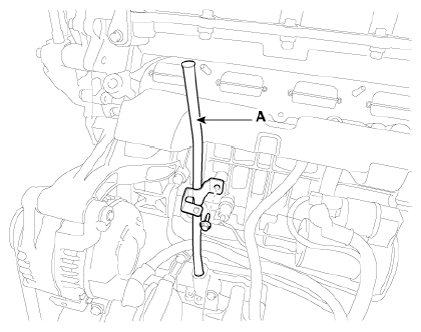

Remove the oil level pipe (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
