Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Apply a light coat of engine oil to the oil cooler packing surface (A), and then install the oil cooler with fix bolt (B).
Tightening torque:

44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

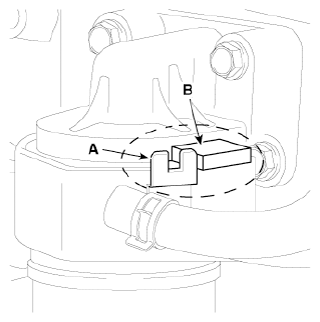

CAUTION: Fix position of oil cooler stopper (A) where oil cooler resists on ladder frame stopper (B).

Courtesy of KIA MOTORS AMERICA, INC.
Apply a light coat of engine oil to the oil filter packing surface (A), and then install the oil filter.
Tightening torque:

11.8 - 15.7 N.m (1.2 - 1.6 kgf.m, 8.7 - 11.6 lb.ft)
Connect the oil cooler coolant hoses (B).

Courtesy of KIA MOTORS AMERICA, INC.
Fill the radiator with coolant and check for leaks.
