BSM (Balance Shaft Module)

WARNING: This page is about a different variant/trim than selected.

Set No. 1 cylinder to TDC/compression.

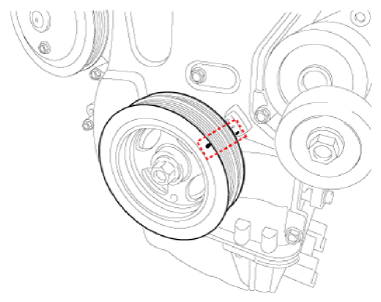

Turn the crankshaft pulley and align its groove with the timing mark "T" of the timing chain cover.

Courtesy of KIA MOTORS AMERICA, INC.

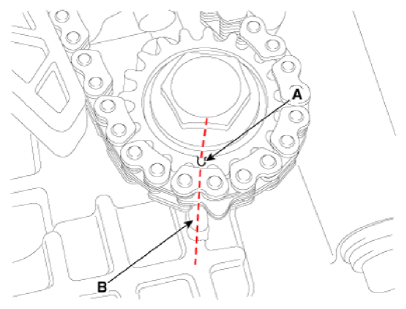

Confirm that the BSM sprocket timing mark (A) is visually aligned with center of adjacent cast timing notch (B).

Courtesy of KIA MOTORS AMERICA, INC.

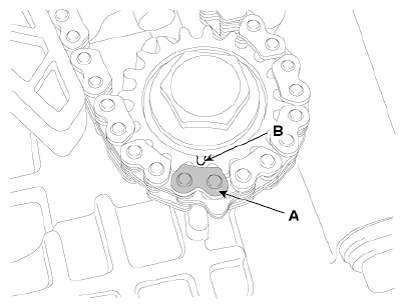

Put a mark on the timing chain (A) corresponding to the timing mark (B) of the sprocket.

Courtesy of KIA MOTORS AMERICA, INC.

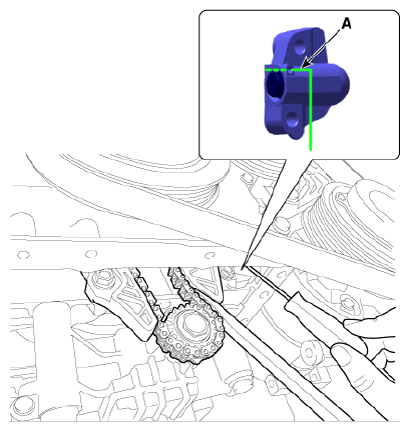

Insert a stopper pin (A) into the hole on the tensioner after compressing the balance shaft chain tensioner piston.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the BSM mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

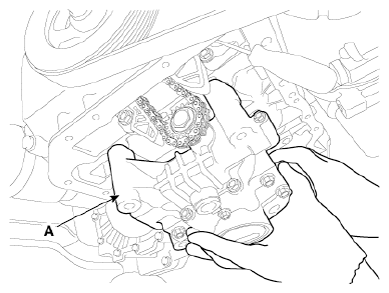

Remove the BSM (Balance Shaft Module) (A) while taking off the chain from the sprocket.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not disassemble the BSM (Balance Shaft Module).
