BSM (Balance Shaft Module)

WARNING: This page is about a different variant/trim than selected.

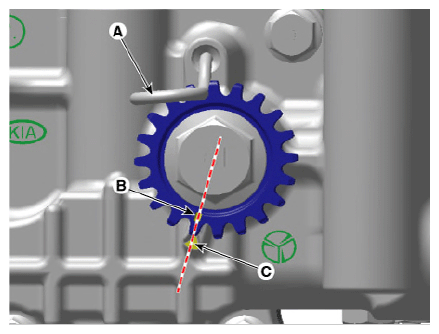

Insert a stopper pin (A) on the BSM to hold the sprocket at the reference position with the timing mark (B) aligned with the timing notch (C).

Courtesy of KIA MOTORS AMERICA, INC.

Information

New BSM has already been installed with a stopper pin at the reference position.

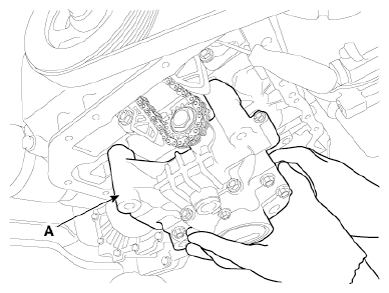

Install the BSM (Balance Shaft Module) (A).

Courtesy of KIA MOTORS AMERICA, INC.

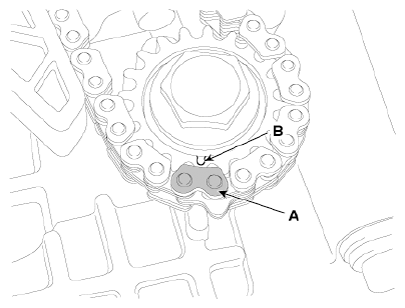

NOTE: The timing mark of BSM sprocket should be matched with the paint-marked link of the timing chain.

Courtesy of KIA MOTORS AMERICA, INC.
Install the BSM mounting bolts.
1. Tighten the bolts with seating torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) and then loosen the bolts.
2. Using the SST (Torque Angle Adapter, 09221-4A000), tighten the bolts with specified tightening torque and angle.

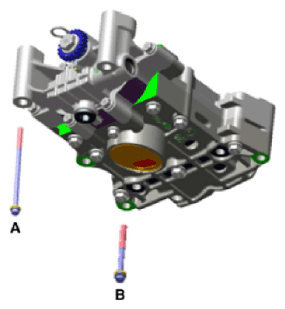

  Tightening torque

  Bolts (A) (M9x181.5): 22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft) + 88° - 92°

  Bolts (B) (M9x100): 22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft) + 43° - 47°
NOTE: Do not reuse the BSM bolts.

Courtesy of KIA MOTORS AMERICA, INC.

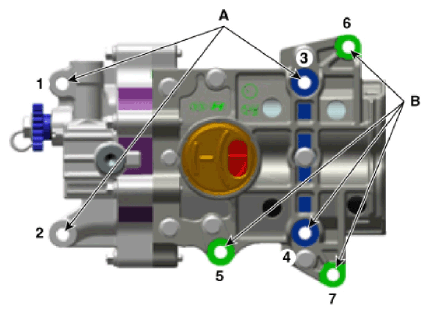

Fig 1: BSM Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

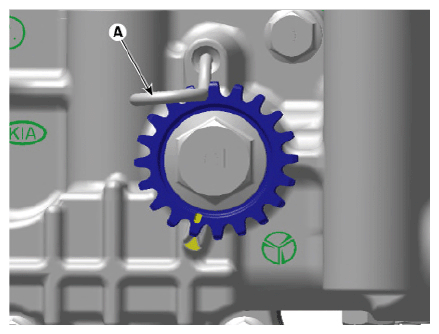

Remove the stopper pin (A) from the BSM.

Courtesy of KIA MOTORS AMERICA, INC.

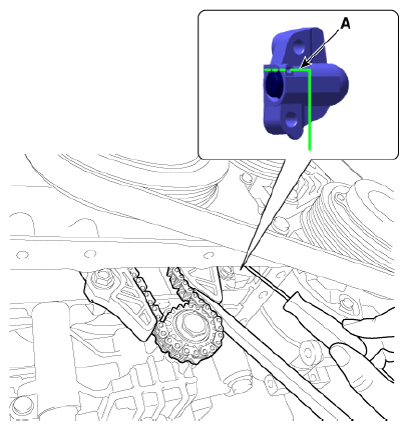

Remove the stopper pin (A) from the tensioner.

Courtesy of KIA MOTORS AMERICA, INC.

Confirm the BSM timing mark.

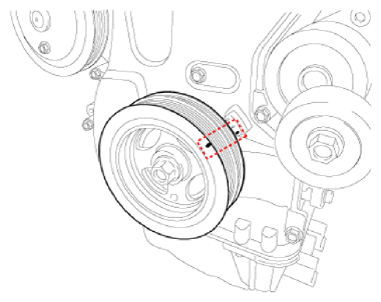

Turn the crankshaft pulley and align its groove with the timing mark "T" of the timing chain cover.

Courtesy of KIA MOTORS AMERICA, INC.

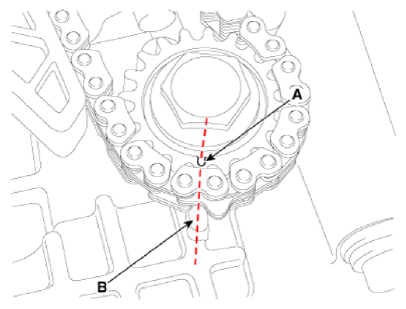

Confirm that the sprocket timing mark (A) is visually aligned with center of adjacent cast timing notch (B).

Courtesy of KIA MOTORS AMERICA, INC.
