Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft damper pulley.

    (Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")

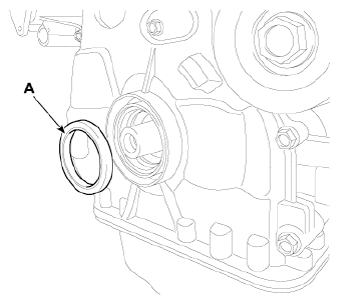

  2. Remove the front oil seal (A).
    G12932529Courtesy of KIA MOTORS AMERICA, INC.

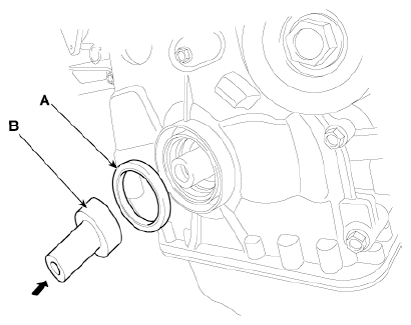

  3. Install the crankshaft front oil seal (A) using SST (09214-3K000, 09231-H1100) (B).
    G12932530Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
  4. Install the crankshaft damper pulley.

    (Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")
