Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")

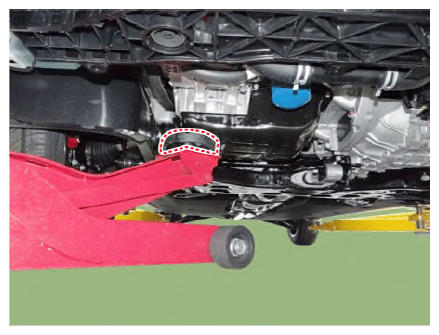

Install the jack to the edge of upper oil pan to support the engine.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert the rubber block between jack and oil pan.

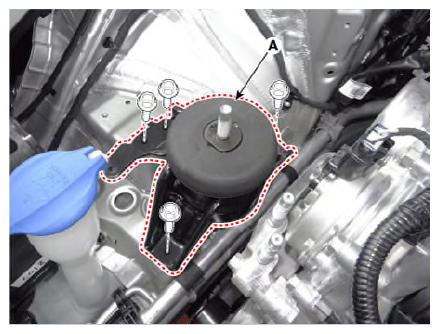

Remove the engine mounting support bracket (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use a new nut.
Remove the reservoir tank.
(Refer to "RESERVOIR TANK ")

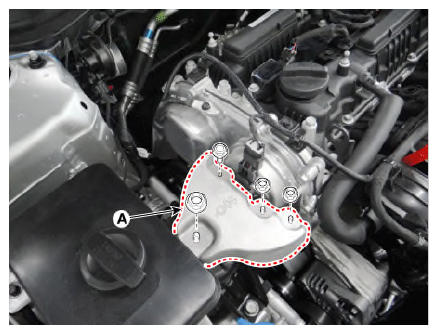

Remove the engine mounting bracket (A).
Tightening torque:

68.7 - 88.3 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
