Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.
NOTE:

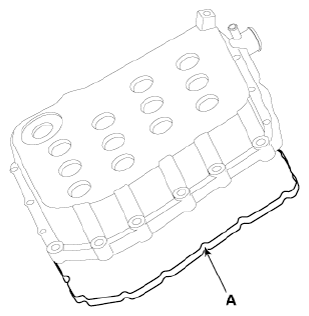

- The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)
- Perform the procedures below after replacing the valve body assembly.
- Refill the automatic transaxle with fluid.
(Refer to "FLUID ")

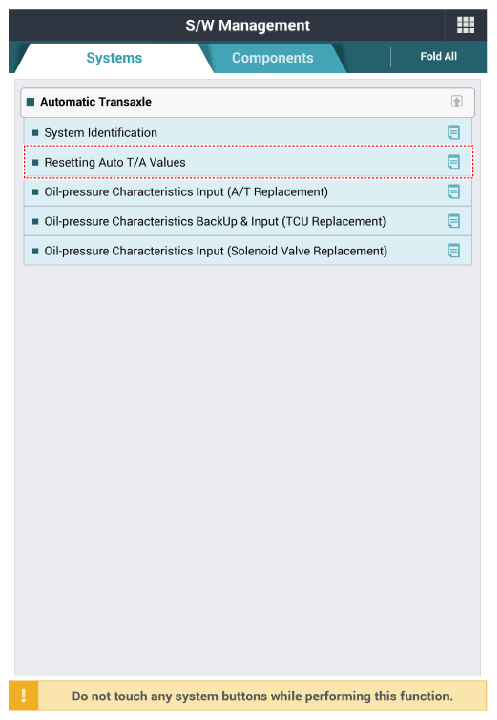

- Reset the automatic transaxle adaptive values using the KDS.
- Perform the TCM adaptive values learning procedure.
(Refer to "TCM ADAPTIVE VALUES LEARNING ")
- Confirm that there is no fluid leakage on connections after repairing.
