Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF and disconnect the negative (-) battery terminal.

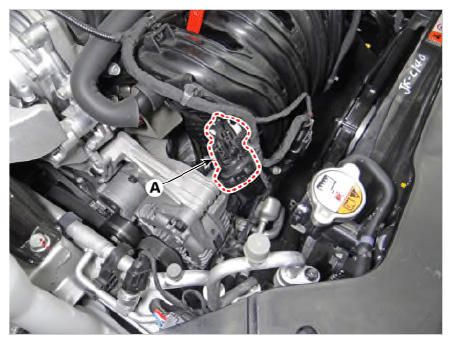

Remove the VIS (Variable intake system) actuator (A).

Courtesy of KIA MOTORS AMERICA, INC.

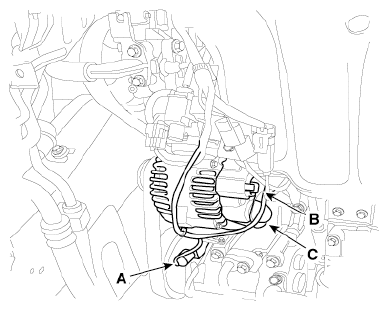

Disconnect the A/C compressor switch connector (A) the alternator connector (B), and the cable from alternator "B" terminal (C).
Alternator "B" terminal tightening nut:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

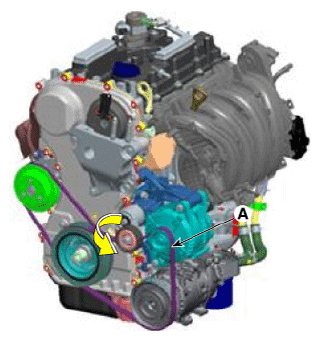

Remove the drive belt (A) after turning the drive belt tensioner (B) counterclockwise.

Courtesy of KIA MOTORS AMERICA, INC.

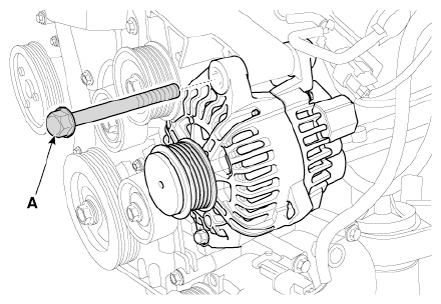

Remove the alternator mounting upper bolt (A).
Alternator mounting upper bolt:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

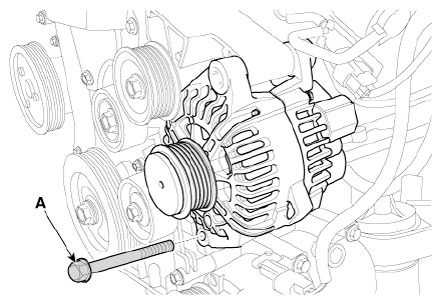

Remove the alternator mounting lower bolt (A).
Alternator mounting lower bolt:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the alternator.
