Removal And Installation
WARNING: This page is about a different variant/trim than selected.

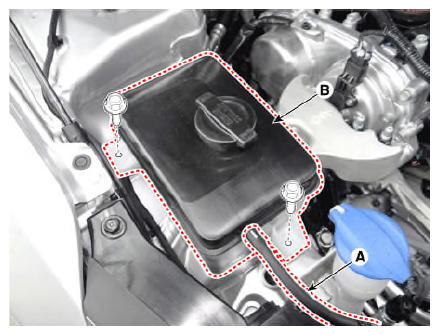

- Disconnect the reservoir hose (A), and then drain the coolant from the reservoir tank.
- Remove the reservoir tank (B).
Tightening Torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
- Refill the coolant.
