Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

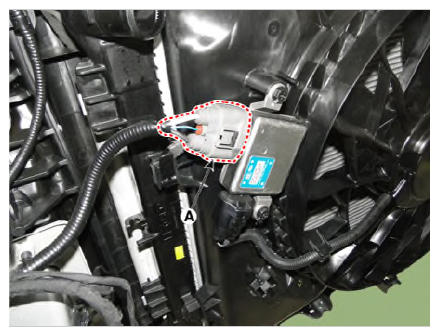

Disconnect the cooling fan controller (PWM) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

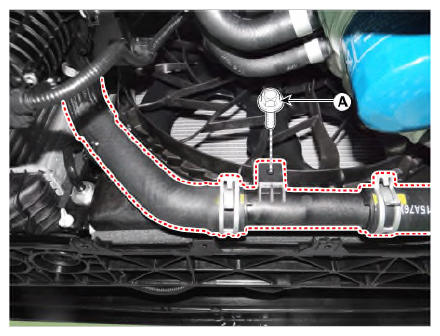

Remove the radiator lower hose clip mounting bolt (A).
Tightening Torque:

5.9 - 8.3 N.m (0.6 - 0.8 kgf.m, 4.4 - 6.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

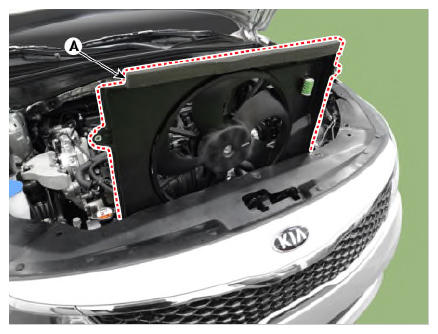

Remove the cooling fan (A) from the radiator.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
