Cooling Fan Control Module
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

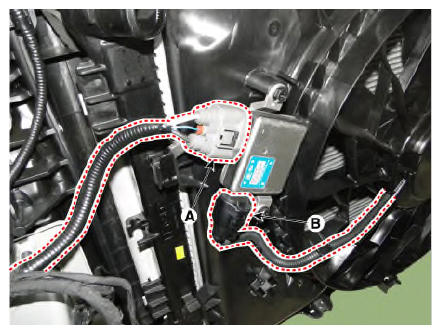

- Disconnect the cooling fan controller connector (PWM) (A) and fan motor extension connector (B).

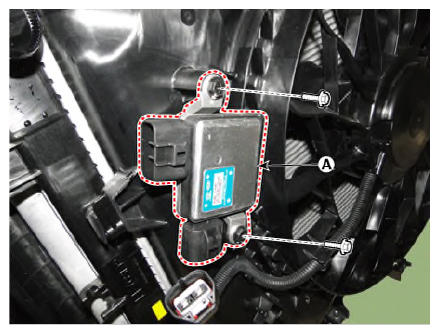

- Remove the cooling fan control module (A).
Tightening Torque:
4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb.ft)
- Install in the reverse order of removal.
