Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

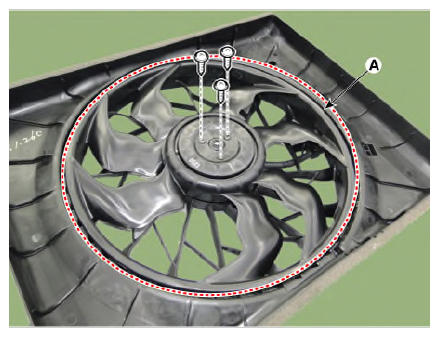

Remove the cooling fan (A) from the cooling fan assembly.
Tightening Torque:

2.8 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.0 - 2.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

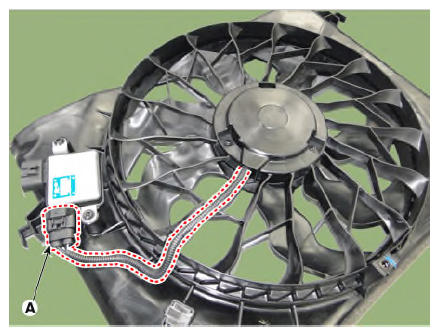

Disconnect the fan motor connector (A) from the cooling fan shroud.

Courtesy of KIA MOTORS AMERICA, INC.

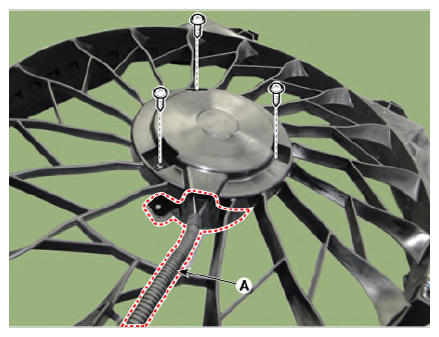

Remove the fan motor (A) from the cooling fan shroud.
Tightening Torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
