Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

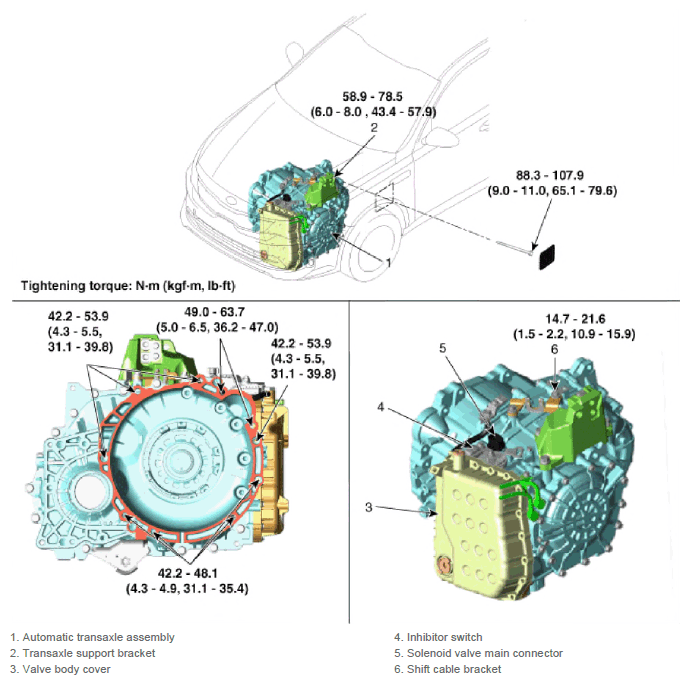

Fig 1: Automatic Transaxle System Components With Torque Specification
G12933116Courtesy of KIA MOTORS AMERICA, INC.
