Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ").

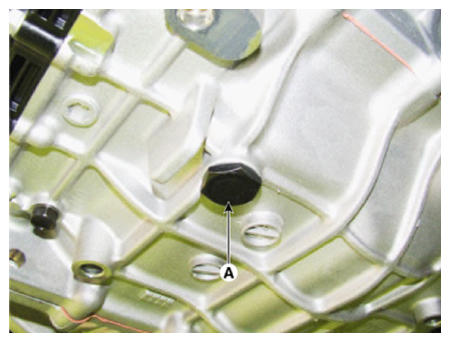

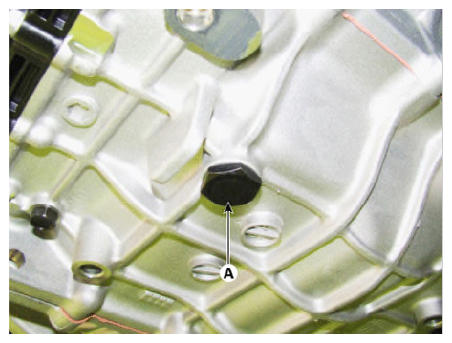

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

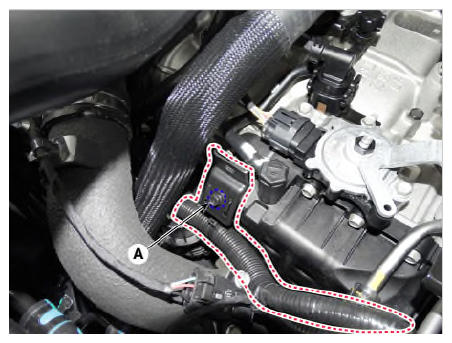

Remove the wiring bracket mounting bolt (A)
Tightening torque:

9.8-11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

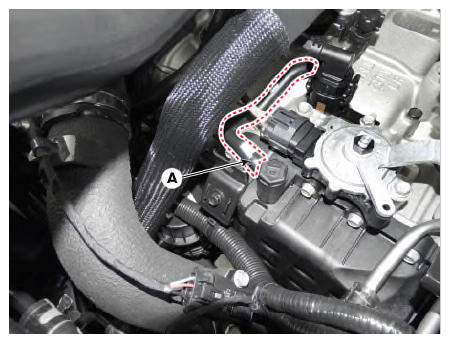

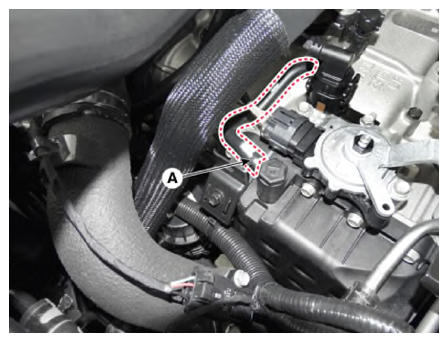

Disconnect the air breather hose (A) from the valve body cover.

Courtesy of KIA MOTORS AMERICA, INC.

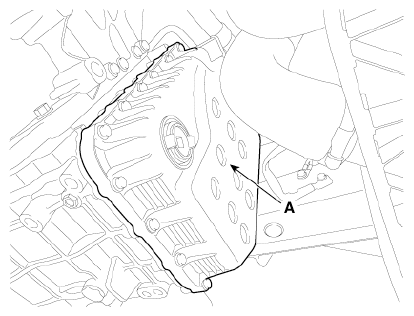

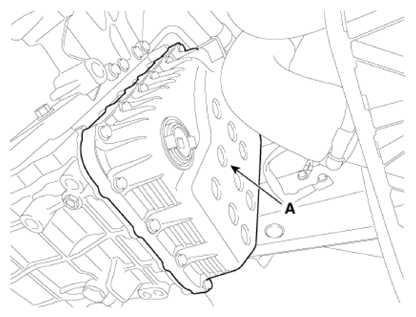

Remove the valve body cover (A).
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

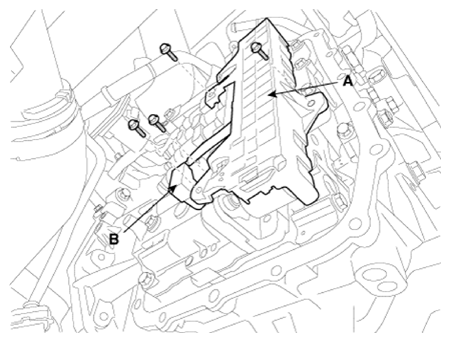

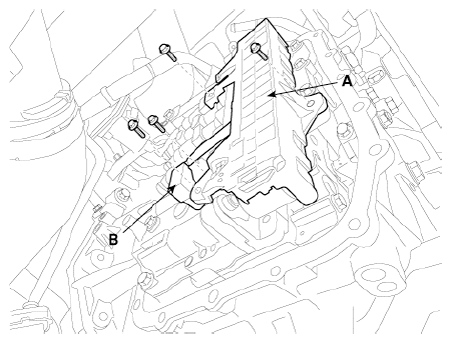

Remove the solenoid valve harness (A) and oil temperature sensor (B) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

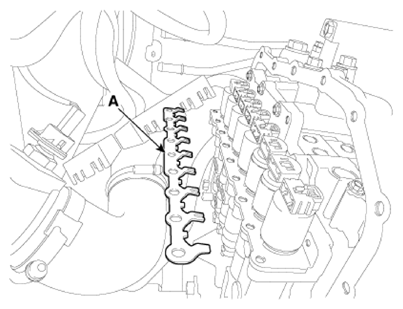

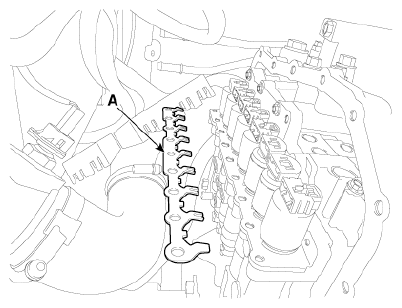

Remove solenoid valve support bracket (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

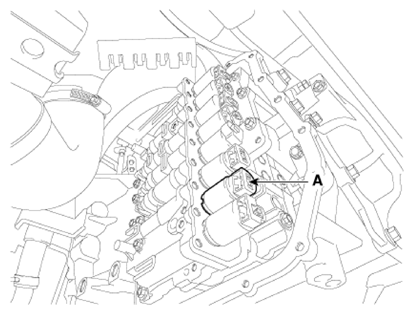

Remove the SS-A solenoid valve (A).

Courtesy of KIA MOTORS AMERICA, INC.
