Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
    NOTE:

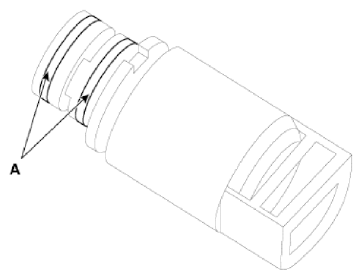

    • The existing solenoid valve O-ring (A) must be replaced with new one. (Do not reuse it.)
      G12933069Courtesy of KIA MOTORS AMERICA, INC.
    • The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
    • Refill the automatic transaxle with fluid.

      (Refer to Hydraulic System- "FLUID ")

    • Confirm that there is no fluid leakage on connections after repairing.
