Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Loosen the drain plug, and drain the coolant. Remove the radiator cap to help drain the coolant faster.
(Refer to Cooling System - "COOLANT ")

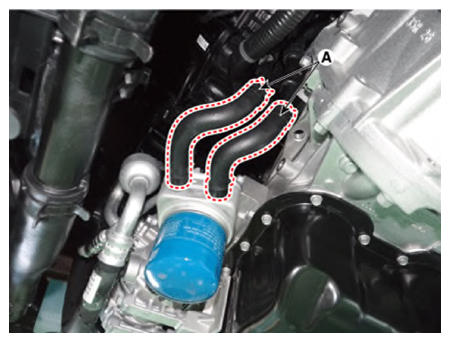

Disconnect the oil cooler coolant hoses (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil filter (A).
(Refer to Lubrication System - "ENGINE OIL ")

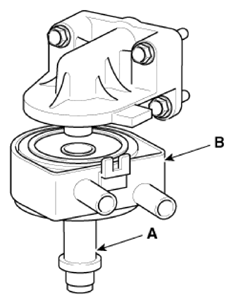

Loosen the mounting bolt (A) and remove the oil cooler assembly (B).
