Special Service Tools

WARNING: This page is about a different variant/trim than selected.
AUTOMATIC TRANSAXLE SYSTEM SPECIAL SERVICE TOOLS

Tool Name/Number Illustration Description
Engine support fixture (bar)
09200-3N000
G12932945Courtesy of KIA MOTORS AMERICA, INC.
 Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200-4X000) and supporter (09200-2S000)
Engine support fixture (supporter)
  1. 09200-2S000
  2. 09200-2S100
  3. 09200-2S200
G12932946Courtesy of KIA MOTORS AMERICA, INC.
 Used for holding engine assembly when removing/installing transaxle
Used with the bar (09200-3N000) and adapter (09200-4X000)
Engine support fixture (adapter)
09200-4X000
G12932947Courtesy of KIA MOTORS AMERICA, INC.
 Used for holding engine assembly when removing/installing transaxle
Used with the bar (09200-3N000) and supporter (09200-2S000)
Oil seal installer
  1. 09453-3L241 (Installer)
  2. 09231-H1100 (Handle)
G12932948Courtesy of KIA MOTORS AMERICA, INC.
 Used for installing differential oil seal
Inhibitor switch guide pin
09480-A3800
G12932949Courtesy of KIA MOTORS AMERICA, INC.
 Used for fixing "N" range when installing inhibitor switch

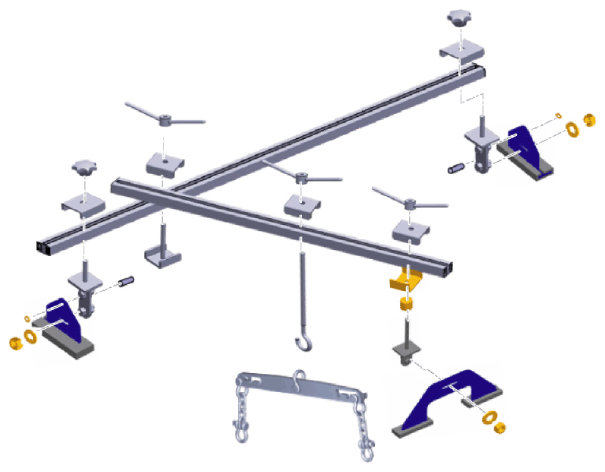

Engine support fixture assembly drawing

G12932950Courtesy of KIA MOTORS AMERICA, INC.
