Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the water pump belt.

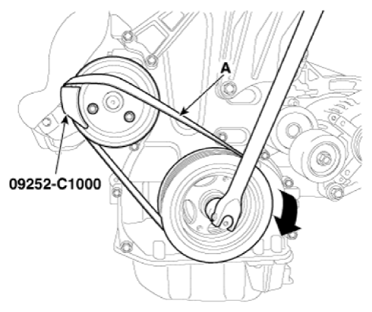

    1. Insert the SST (09252-C1000) between the water pump pulley and the water pump belt
    2. Install the water pump belt (A) by turning the damper pulley clockwise.
    G12921866Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Install the water pump belt while being careful not to damage the water pump belt caused by water pump pulley mounting bolt.

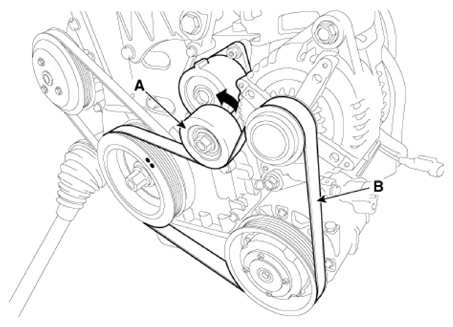

  2. For release the tension, turn the drive belt tensioner (A) counterclockwise then install the drive belt (B).
    Fig 1: Engine Drive Belt Routing Diagram
    G12921867Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the other parts in the reverse order of removal.
