Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
NOTE:

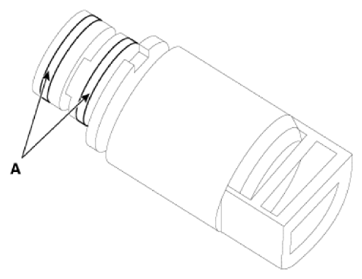

  • The existing solenoid valve O-ring (A) must be replaced with new one. (Do not reuse it.)
    G12922619Courtesy of KIA MOTORS AMERICA, INC.
  • The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
  • Refill the automatic transaxle with fluid.

    (Refer to Hydraulic System - "FLUID ")

  • Confirm that there is no fluid leakage on connections after repairing.
