Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" ignition.
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

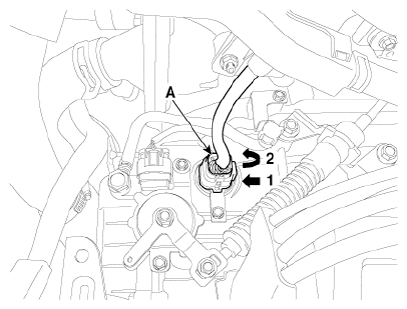

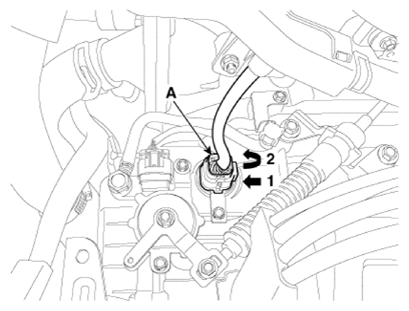

- Disconnect the solenoid valve connector (A).

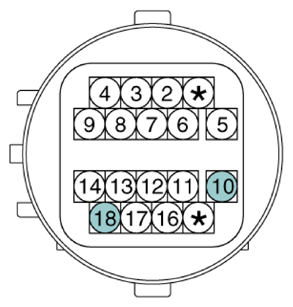

- Measure the resistance between power terminal (10) and signal terminal (18).
Specification : 10.0 - 11.0 Ω
