Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the gear to "N".
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

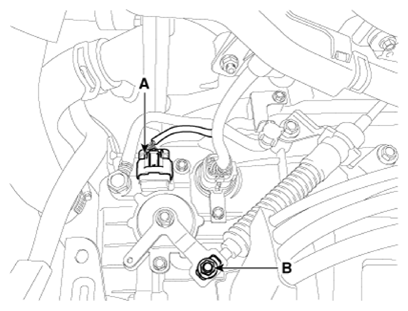

  3. Disconnect the inhibitor switch connector (A) and loosen the shift cable mounting nut (B).
    G12922638Courtesy of KIA MOTORS AMERICA, INC.

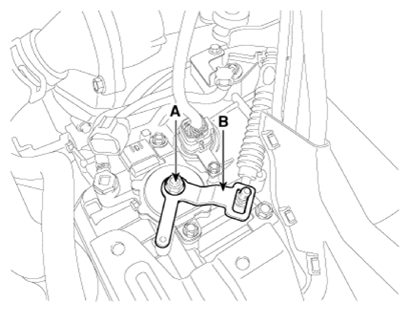

  4. Remove the manual control lever (B) and the washer after removing a nut (A).
    G12922639Courtesy of KIA MOTORS AMERICA, INC.

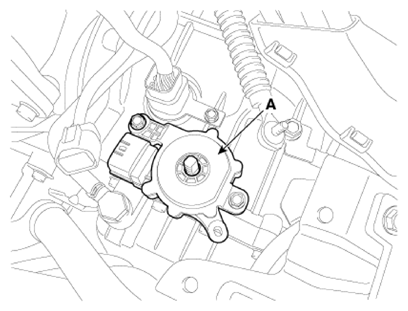

  5. Remove the inhibitor switch (A) after loosening the bolts.
G12922640Courtesy of KIA MOTORS AMERICA, INC.
