Description & Operation: Operation

WARNING: This page is about a different variant/trim than selected.

Courtesy of KIA MOTORS AMERICA, INC.

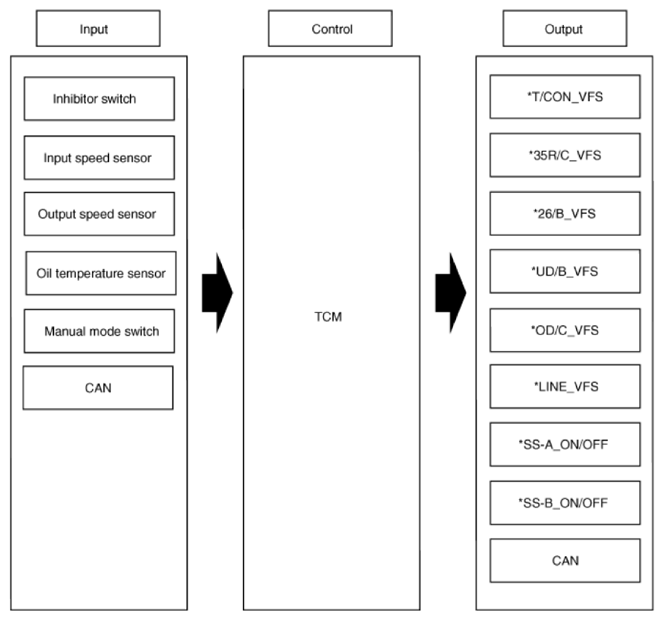

*T/CON_VFS: Torque converter control solenoid valve

*35R/C_VFS: 35R clutch control solenoid valve

*26/B_VFS: 26 Brake control solenoid valve

*UD/B_VFS: Underdrive brake control solenoid valve

*OD/C_VFS: Overdrive clutch control solenoid valve

*LINE_VFS: Line pressure control solenoid valve

*SS-A_ON/OFF: Shift control solenoid valve-A

*SS-B_ON/OFF: Shift control solenoid valve-B
