Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ").

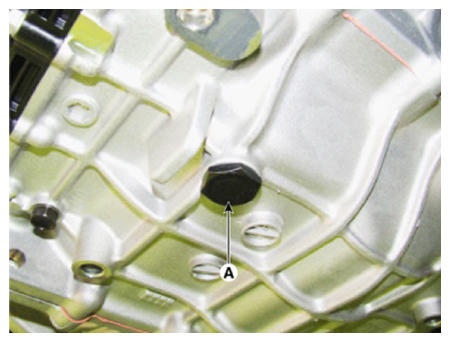

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
- ATF can be reused. Collect it in a clean beaker.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

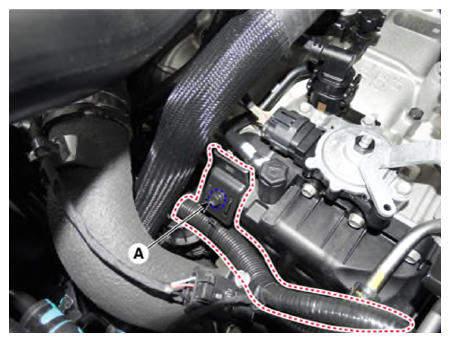

Remove the wiring bracket mounting bolt (A)
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

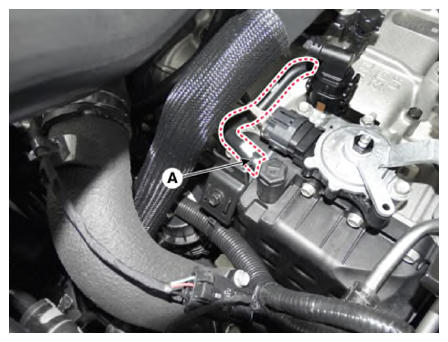

Disconnect the air breather hose (A) from the valve body cover.

Courtesy of KIA MOTORS AMERICA, INC.

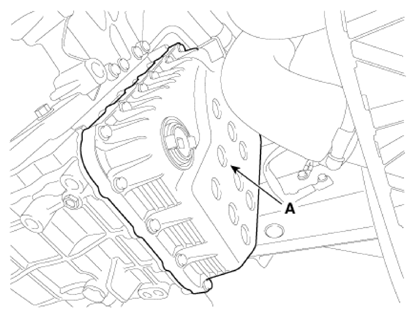

Remove the valve body cover (A).
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

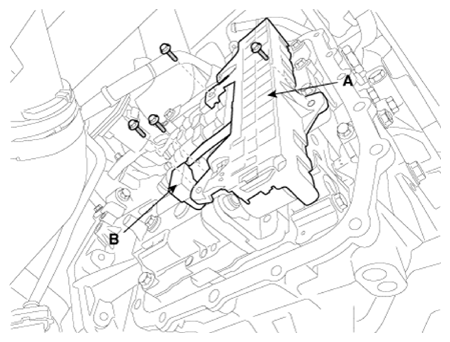

Remove the solenoid valve harness (A) and oil temperature sensor (B) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

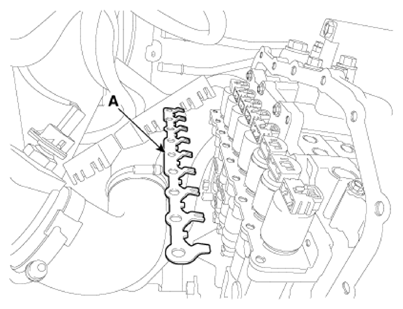

Remove solenoid valve support bracket (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

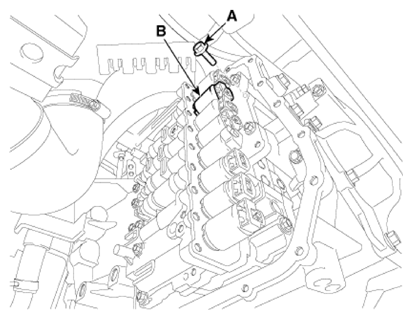

Remove the 35R clutch control solenoid valve (B) after loosening a valve body mouning bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
