Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" ignition.
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

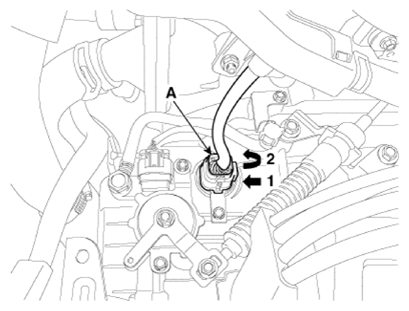

- Disconnect the solenoid valve connector (A).
- Measure the resistance between power terminal (5) and signal terminal (11).
Specification : 5.1 ± 0.3 Ω
