Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air duct and the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")

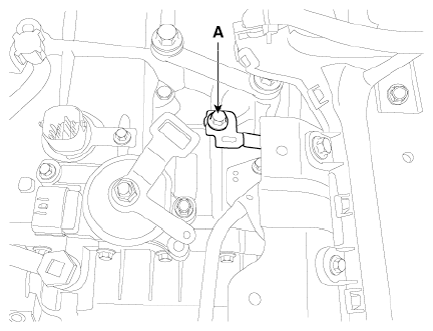

Loosen the wiring bracket mounting bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

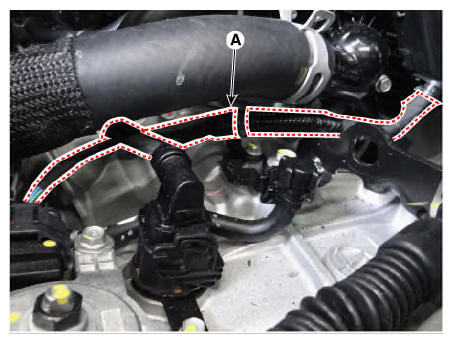

Remove the wiring (A) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.

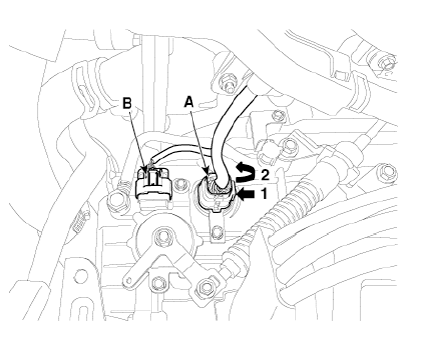

Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

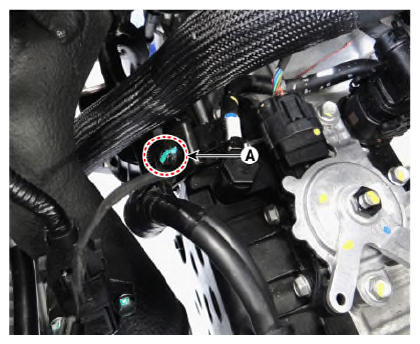

Remove the ground line after loosening the bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

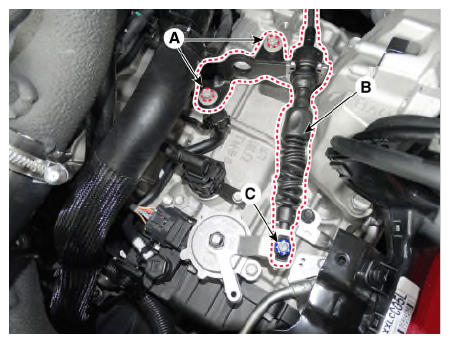

Remove the shift cable (B) after loosening the nut (C) and bolts (A).
Tightening torque:

(A) 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb.ft)

(C) 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

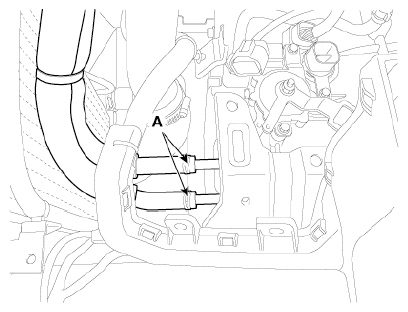

Separate the ATF cooler (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the intercooler inlet hose & pipe assembly
(Refer to "INTERCOOLER ")

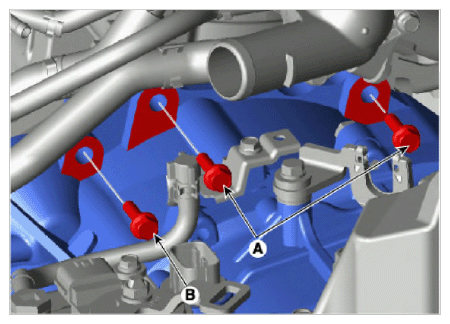

Remove the transaxle upper mounting bolts (A) and the starter mounting bolt (B).
Tightening torque:
1. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
2. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

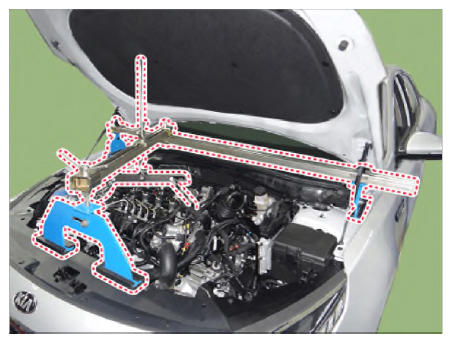

Assemble the engine support fixture on the engine room.
(Refer to "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

Courtesy of KIA MOTORS AMERICA, INC.

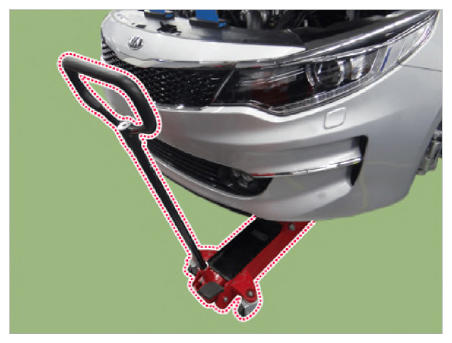

Support the transaxle on a jack.

Courtesy of KIA MOTORS AMERICA, INC.

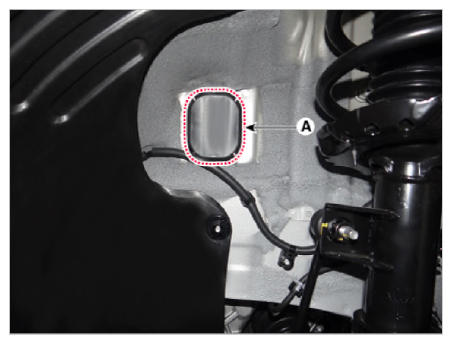

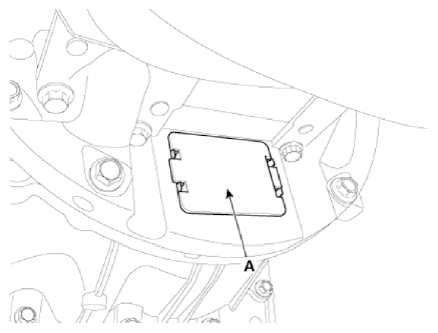

Remove the cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

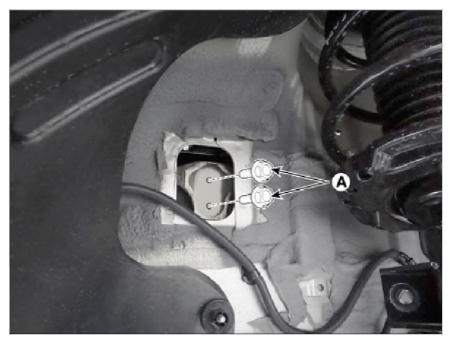

Remove the transaxle mounting bracket bolts (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

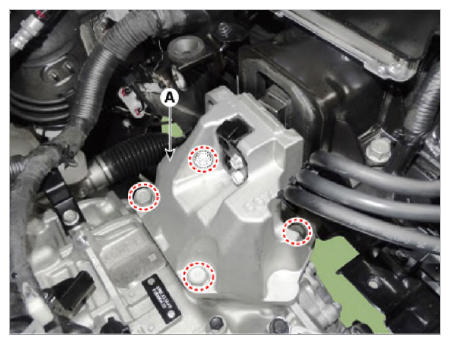

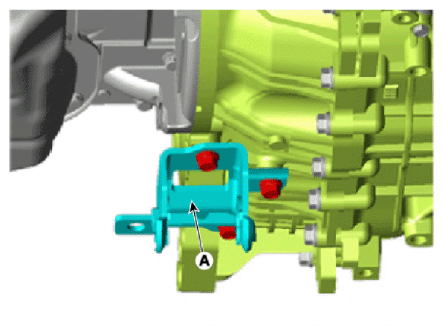

Remove the transaxle support bracket (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft assembly.
(Refer to "FRONT DRIVESHAFT ")

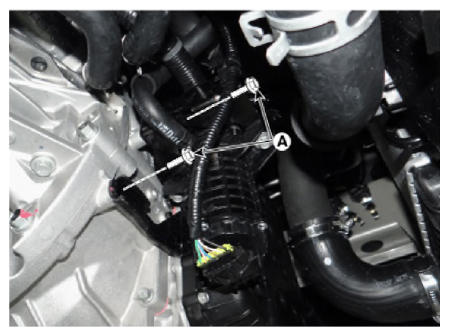

Loosen the vacuum pump bracket mounting bolts (A).
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

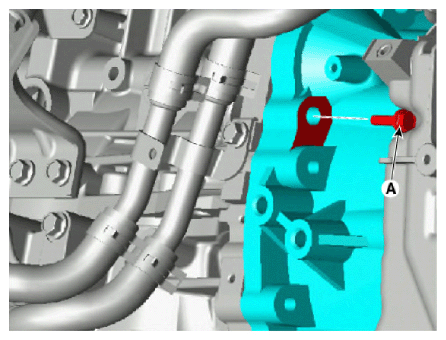

Loosen the starter mounting bolt (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Support the transaxle safely on a jack.

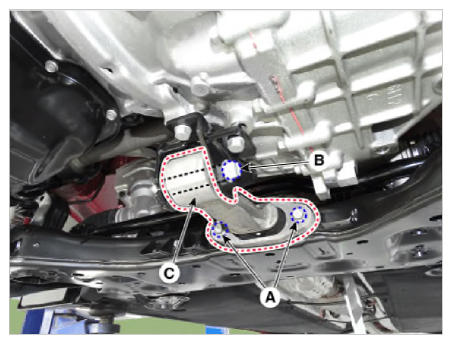

Remove the roll rod bracket (C) after loosening the bolts (A, B).
Tightening torque:
1. 107.9 - 127.5 N.m (5.0 - 6.5 kgf.m, 79.6 - 94.0 lb.ft)
2. 49.0 - 63.7 N.m (11.0 - 13.0 kgf.m, 36.2 - 47.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

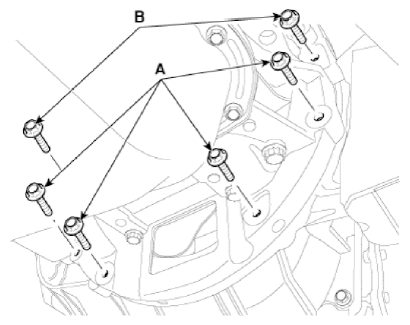

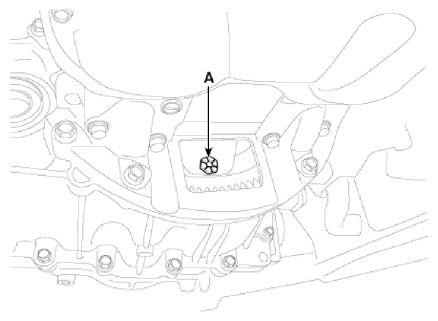

Remove the torque converter mounting bolts (A) by rotating the crankshaft.
Tightening torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the transaxle lower mounting bolts (A, B).
Tightening torque:
1. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)
2. 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
After separating the transaxle from the engine, remove the transaxle by lowering the jack slowly.

NOTE: Be careful not to damage other nearby systems or parts when removing the transaxle assembly.
