Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

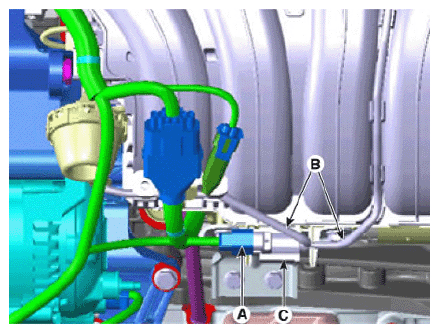

  2. Disconnect the variable intake solenoid valve connector (A) and vacuum hoses (B).
  3. Remove the variable intake solenoid valve after loosening the mounting bolt from the surge tank.
G12932843Courtesy of KIA MOTORS AMERICA, INC.
