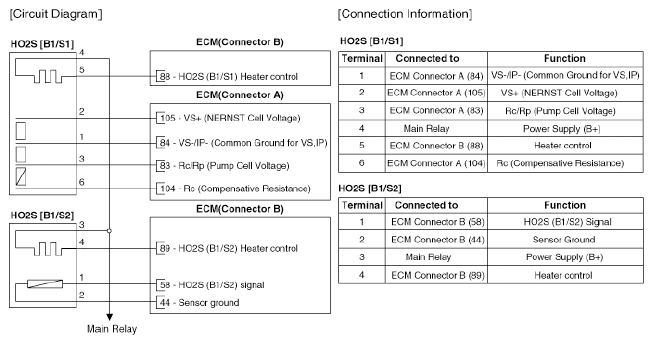

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.
G12932791Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

[Bank 1/Sensor 1]

G12932792Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

G12932793Courtesy of KIA MOTORS AMERICA, INC.
