Description And Operation: Description

WARNING: This page is about a different variant/trim than selected.

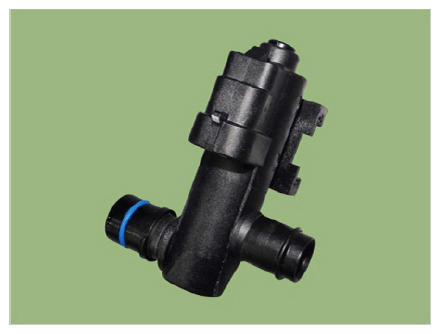

Canister Close Valve (CCV) is installed on the canister ventilation line. It seals evaporative emission control system by shutting the canister from the atmosphere when leakage detecting system operates.

G12932862Courtesy of KIA MOTORS AMERICA, INC.
