[Bank 1/Exhaust]
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

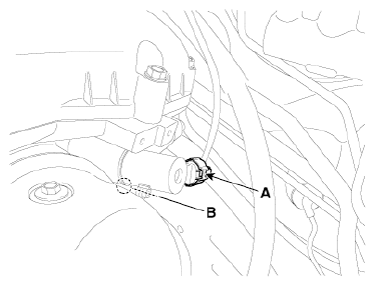

- Disconnect the CVVT oil control valve connector (A).
- Remove the mounting bolt (B), and then remove the valve from the engine.
 Courtesy of KIA MOTORS AMERICA, INC.
|
