Removal And Installation: Resistor
WARNING: This page is about a different variant/trim than selected.

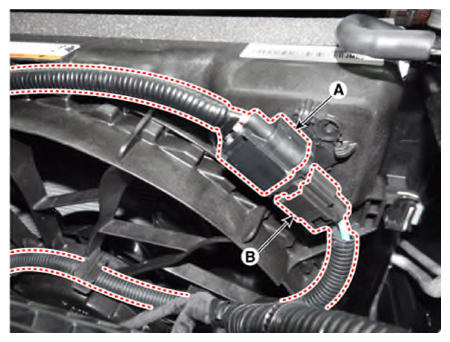

- Disconnect the wire harness connector (A) and the fan motor connector (B).
 Courtesy of KIA MOTORS AMERICA, INC.
|

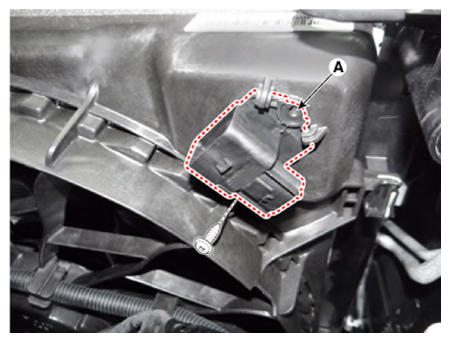

- Remove the resistor (A) from the cooling fan shroud.
Tightening torque:
1.8 - 3.3 N.m (0.18 - 0.34 kgf.m, 1.3 - 2.4 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
