Cooling Fan Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the air duct.

    (Refer to Intake and Exhaust - "AIR CLEANER ")

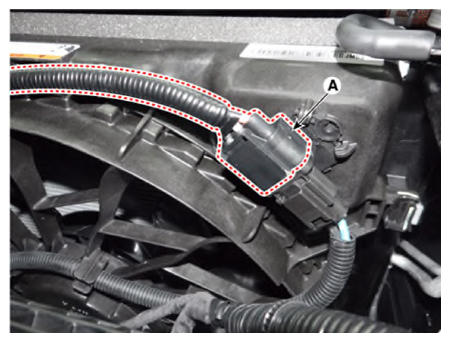

  3. Disconnect the fan motor connector (A).
    G12921710Courtesy of KIA MOTORS AMERICA, INC.

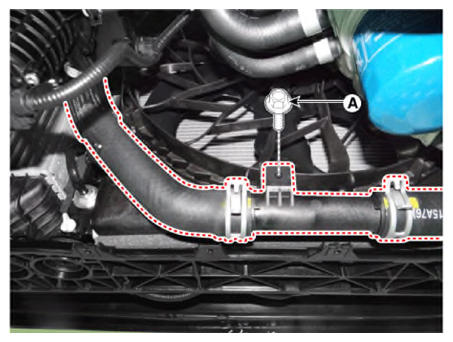

  4. Remove the radiator lower hose clip mounting bolt (A).

    Tightening torque:

    5.9 - 8.3 N.m (0.6 - 0.8 kgf.m, 4.4 - 6.1 lb.ft)

    G12921711Courtesy of KIA MOTORS AMERICA, INC.

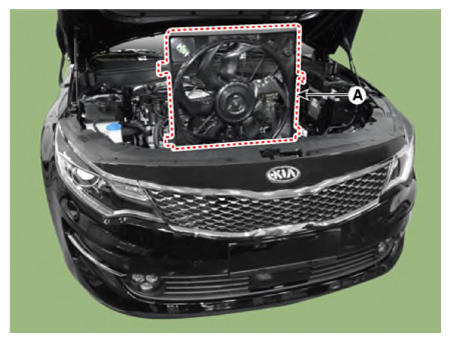

  5. Remove the cooling fan (A) from the radiator.
    G12921712Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
