Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

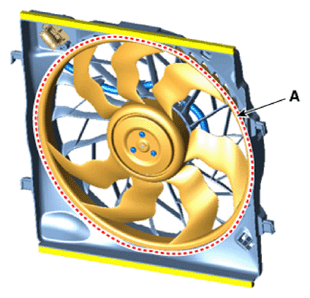

Remove the cooling fan (A) from the cooling fan assembly.
Tightening torque:

2.8 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.03 - 2.39 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

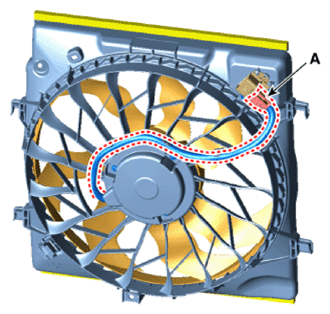

Disconnect the fan motor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

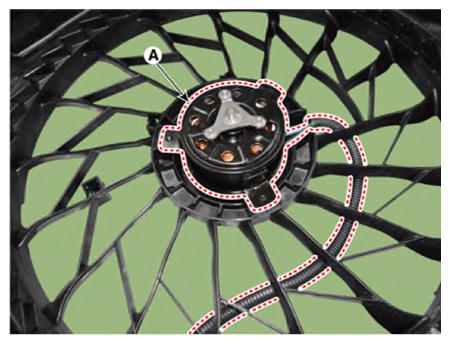

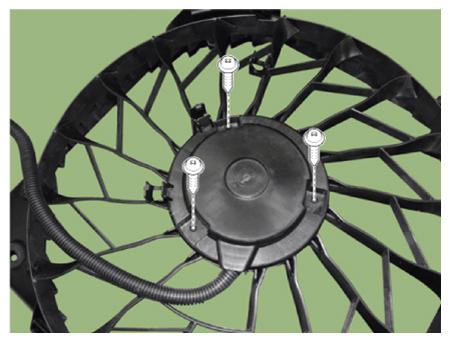

Remove the fan motor (A) from the cooling fan shroud.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
