Battery Tray
WARNING: This page is about a different variant/trim than selected.
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

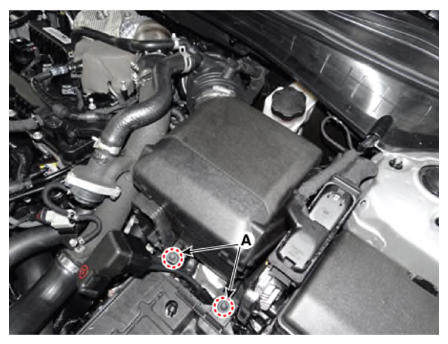

- Remove the air cleaner mounting bolt and nut (A).

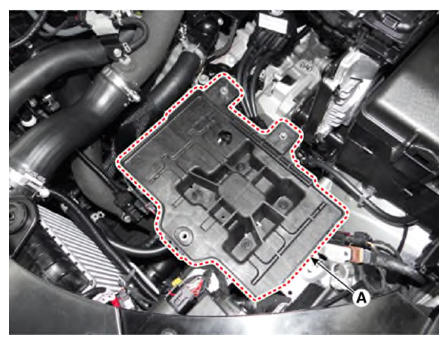

- Remove the battery tray (A) after loosening the mounting bolts.
Battery tray mounting bolt:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.4 - 21.7 lb.ft)
