Battery Terminal

WARNING: This page is about a different variant/trim than selected.
  1. Move back and forth to check that the battery terminals (A) are loose or corroded. If the terminals are corroded, clean them.
    G12922130Courtesy of KIA MOTORS AMERICA, INC.
    G12922131Courtesy of KIA MOTORS AMERICA, INC.

    If battery positive connection is loose, disconnect ground (GND) cable first before attempting to remove or tighten plus connection, to prevent personal injury.

  2. If the battery clamp on battery positive (+) terminal is not seated securely:
    1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

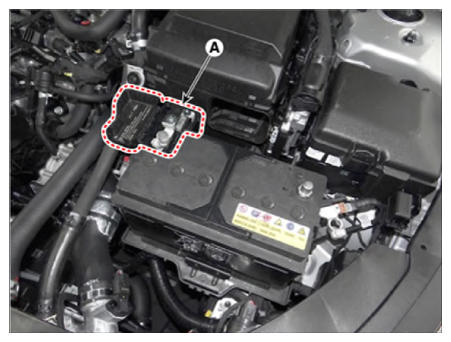

    2. Tighten battery clamp (A) on battery positive (+) terminal

      Battery positive (+) terminal:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

      G12922132Courtesy of KIA MOTORS AMERICA, INC.
  3. If the battery clamp on battery negative (-) terminal is not seated securely:

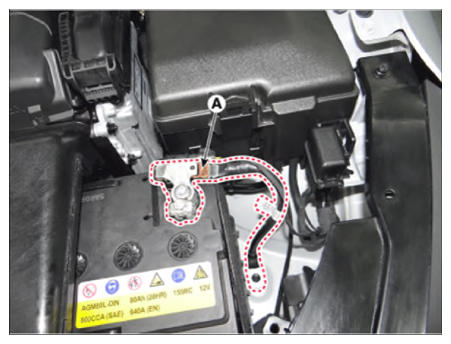

    1. Tighten battery clamp (A) on battery negative (-) terminal.

      Battery negative (-) terminal:

      4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb.ft)

      G12922133Courtesy of KIA MOTORS AMERICA, INC.
