Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
G12922363Courtesy of KIA MOTORS AMERICA, INC.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

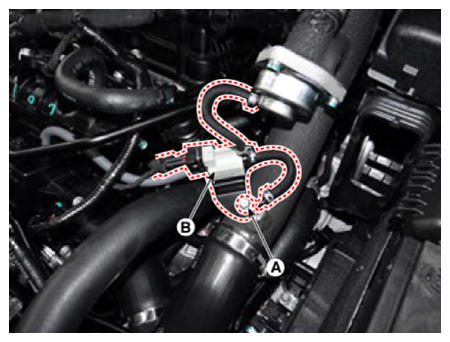

  2. Remove the RCV control solenoid valve (B) after loosening the solenoid mounting bolt (A).
    G12922364Courtesy of KIA MOTORS AMERICA, INC.

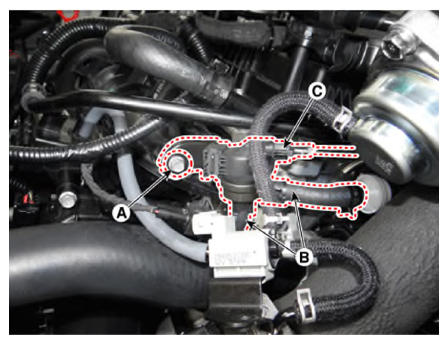

  3. Remove the purge control solenoid valve mounting bolt (A).
  4. Remove the purge control splendid valve (A) after disconnect the purge control solenoid valve connector (C) and vapor hoses (B).
G12922365Courtesy of KIA MOTORS AMERICA, INC.
