Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.

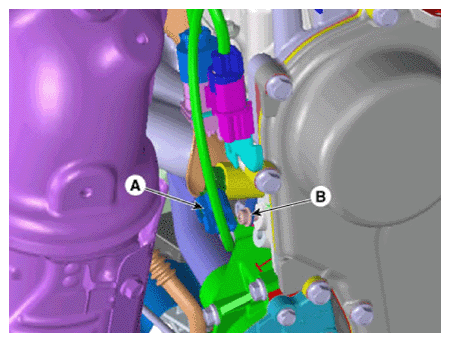

    [Bank 1/Exhaust]

G12922369Courtesy of KIA MOTORS AMERICA, INC.
