Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

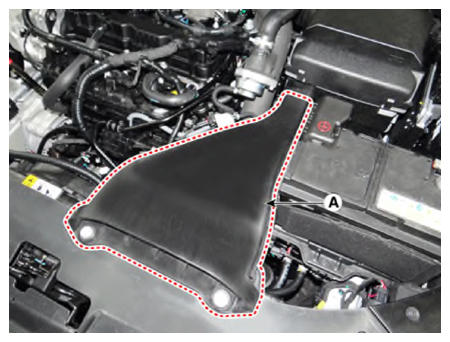

- Remove the air duct (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

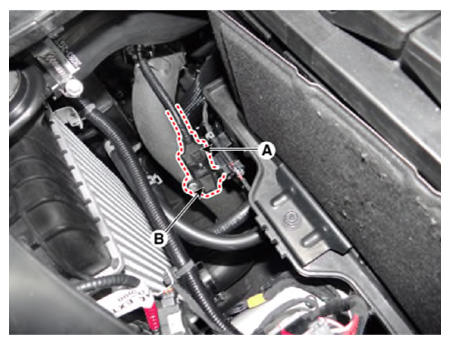

- Disconnect the barometric pressure sensor connector (A).
- Remove the mounting bolt (B), and then remove the sensor from the intercooler outlet pipe.
 Courtesy of KIA MOTORS AMERICA, INC.
|
