Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

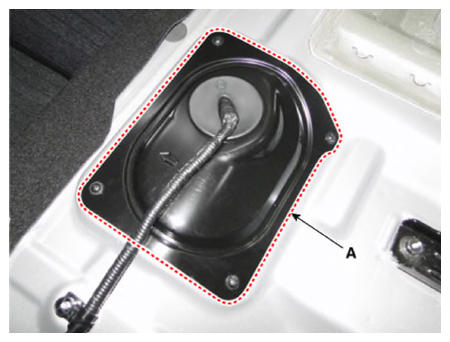

  4. Remove the fuel pump service cover (A)
    G12922432Courtesy of KIA MOTORS AMERICA, INC.

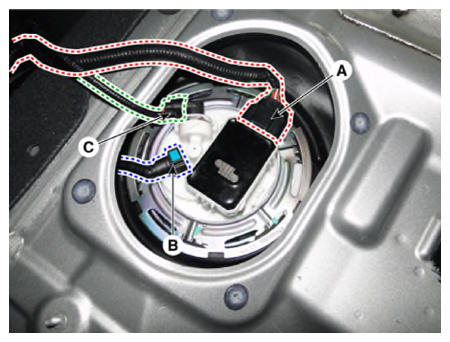

  5. Disconnect the fuel pump control module connector (A).
  6. Disconnect the fuel feed tube quick-connector (B).
  7. Disconnect the fuel pressure sensor connector (C).
    G12922433Courtesy of KIA MOTORS AMERICA, INC.

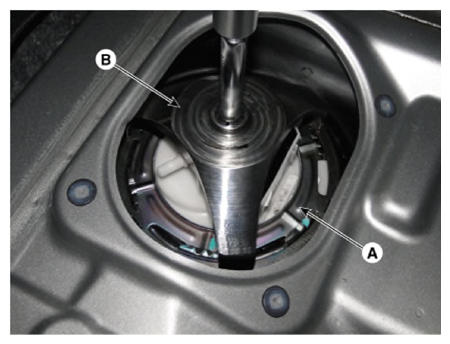

  8. Remove the locking ring (A) by using the special service tool (B) [No.: 09310-B9100].
    G12922434Courtesy of KIA MOTORS AMERICA, INC.

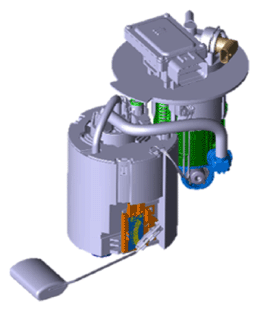

  9. Remove the fuel pump from the fuel tank.
G12922435Courtesy of KIA MOTORS AMERICA, INC.
