Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "REMOVAL ")

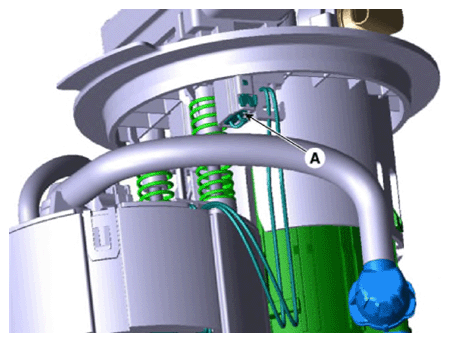

  2. Disconnect the fuel sender connector (A).
    G12922446Courtesy of KIA MOTORS AMERICA, INC.

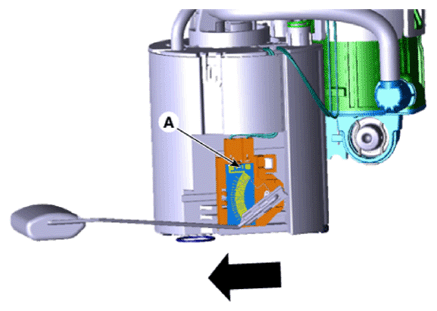

  3. Remove the fuel sender (A) after releasing the fix hook.
G12922447Courtesy of KIA MOTORS AMERICA, INC.

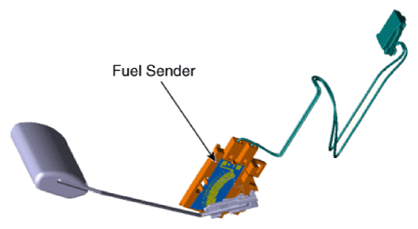

G12922448Courtesy of KIA MOTORS AMERICA, INC.
