Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "REMOVAL ")

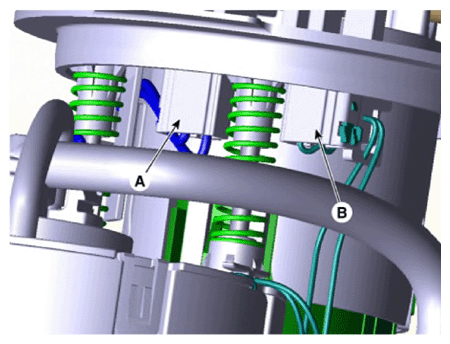

  2. Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).
    G12922439Courtesy of KIA MOTORS AMERICA, INC.

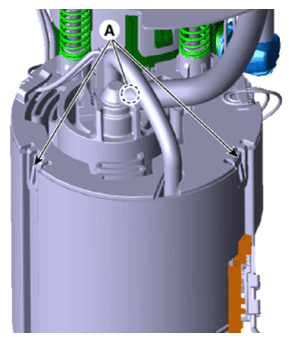

  3. Remove the reservoir-cup after releasing the fixing hook (A).
    G12922440Courtesy of KIA MOTORS AMERICA, INC.

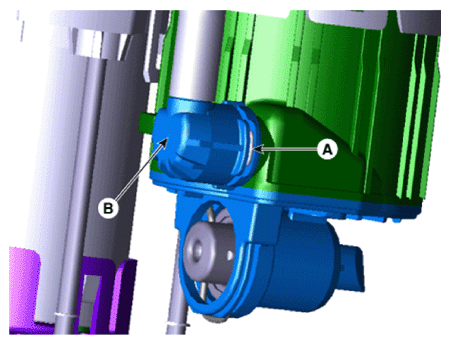

  4. Remove the fixing clip (A), and then disconnect the fuel tube (B).
    G12922441Courtesy of KIA MOTORS AMERICA, INC.

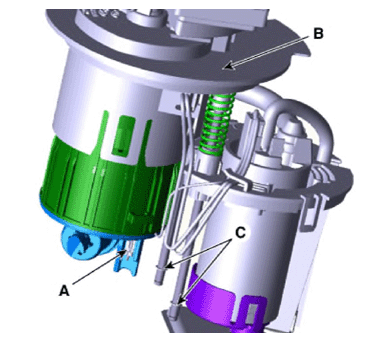

  5. Disconnect the ground cable (A).
  6. Remove the head assembly (B) after removing the cushion pipe fixing clip (C).
    G12922442Courtesy of KIA MOTORS AMERICA, INC.

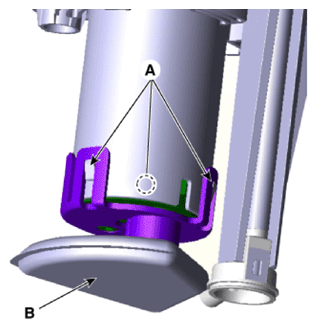

  7. Remove the pre-filter (B) after releasing the fixing hooks (A).
    G12922443Courtesy of KIA MOTORS AMERICA, INC.

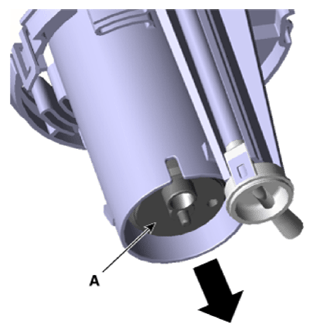

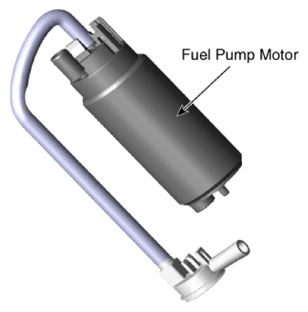

  8. Remove the fuel pump motor (A) in the direction of an arrow.
G12922444Courtesy of KIA MOTORS AMERICA, INC.
G12922445Courtesy of KIA MOTORS AMERICA, INC.
