High Pressure Fuel Line

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF and then remove the battery negative (-) terminal.
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

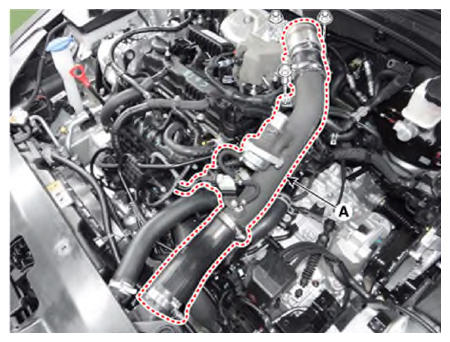

Remove the Intercooler inlet pipe & hose assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

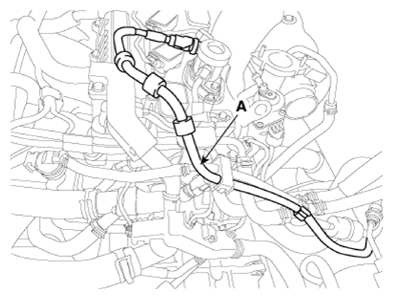

Remove the Low pressure fuel line (A) after loosening the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.

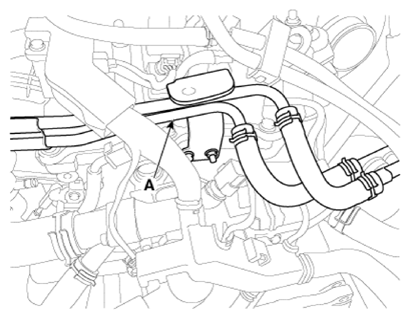

Remove the vacuum bracket assembly (A) after loosening the mounting bolt and nut.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the purge control solenoid valve.
(Refer to Engine Control System - "PURGE CONTROL SOLENOID VALVE ")

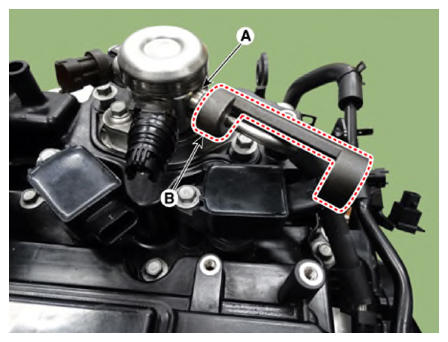

Remove the high pressure pipe flange nut (A) in order of with the special service tool (B) [SST No.: 09314-3Q100]
High pressure fuel pipe flange nut:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

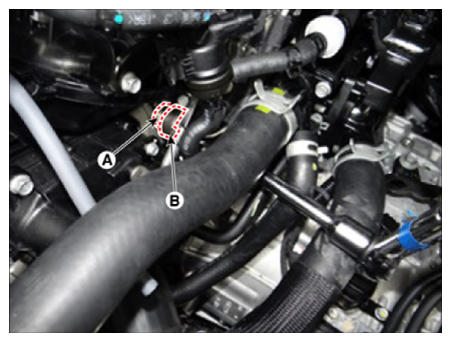

Remove the high pressure pipe flange nut (A) in order of with the special service tool (B) [SST No.: 09314-3Q100].

Courtesy of KIA MOTORS AMERICA, INC.

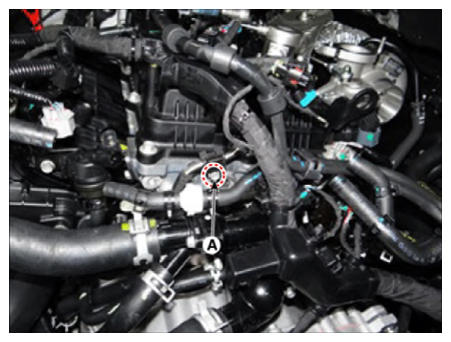

Remove the high pressure fuel pipe function block mounting bolt (A).
High pressure fuel pipe function block mounting bolt:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the high pressure fuel pipe.
