Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Open the fuel filler door.
  2. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

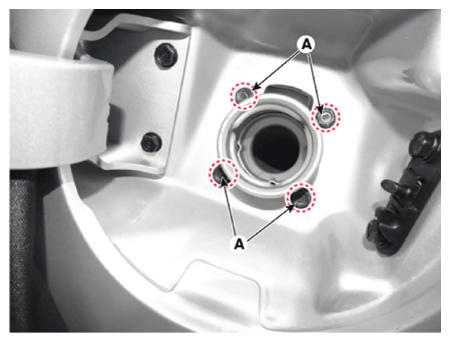

  3. Remove the filler-neck mounting bolt (A).
    G12922478Courtesy of KIA MOTORS AMERICA, INC.
  4. Lift the vehicle.

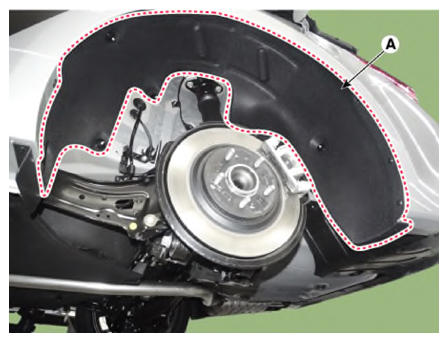

  5. Remove the rear-LH wheel, tire, and the inner wheel house (A).
    G12922479Courtesy of KIA MOTORS AMERICA, INC.

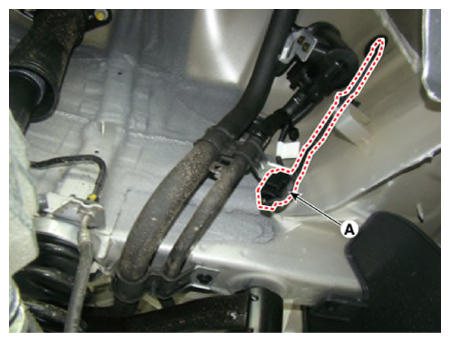

  6. Disconnect the canister close valve connector (A).
    G12922480Courtesy of KIA MOTORS AMERICA, INC.

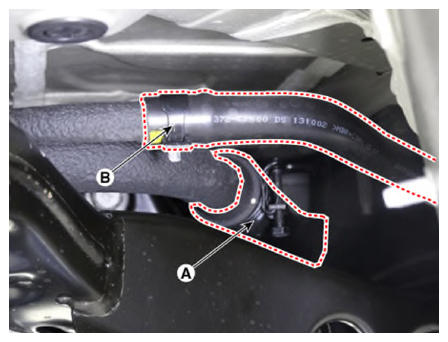

  7. Disconnect the fuel filler hose (A).
  8. Disconnect the ventilation hose (B) from the fuel tank air filter.
    G12922481Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the rear sub frame.

    (Refer to Suspension System - "REAR CROSS MEMBER ")

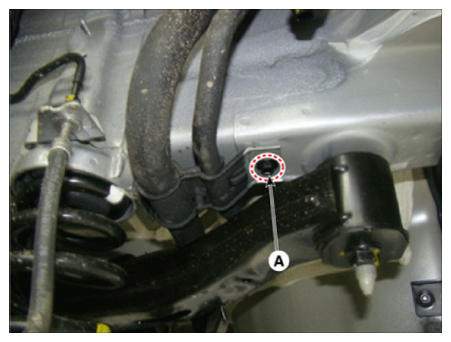

  10. Remove the filler-neck assembly from the vehicle after removing the bracket installation bolt (A).
G12922482Courtesy of KIA MOTORS AMERICA, INC.
