Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

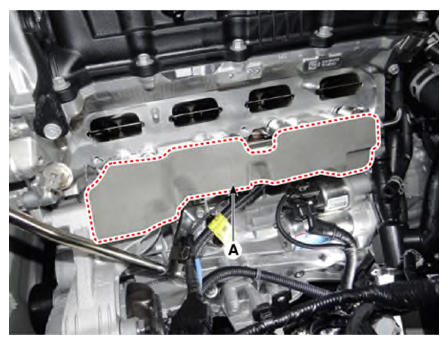

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

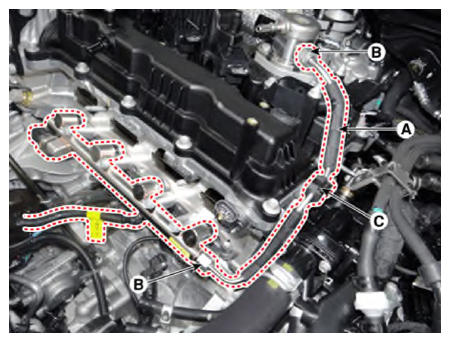

Remove the high pressure fuel pipe (A) after loosening the high pressure fuel pipe flange nuts (B) and function block mounting bolt (C).
High pressure fuel pipe flange nut:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

High pressure fuel pipe function block mounting bolt:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

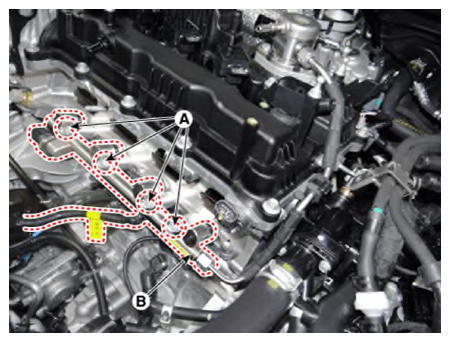

Remove the mounting bolt (A), and then remove the delivery pipe & injector assembly (B) from the engine.
Delivery pipe & injector assembly mounting bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

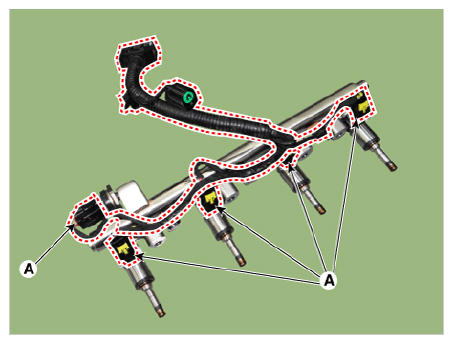

Remove the delivery pipe & injector connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

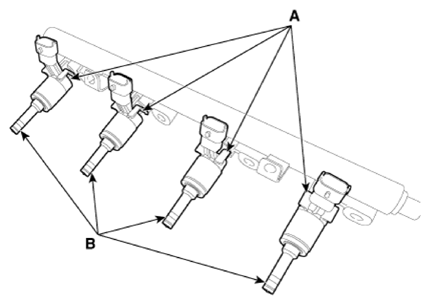

Remove the injector (B) from the delivery pipe & injector (A).

Courtesy of KIA MOTORS AMERICA, INC.
